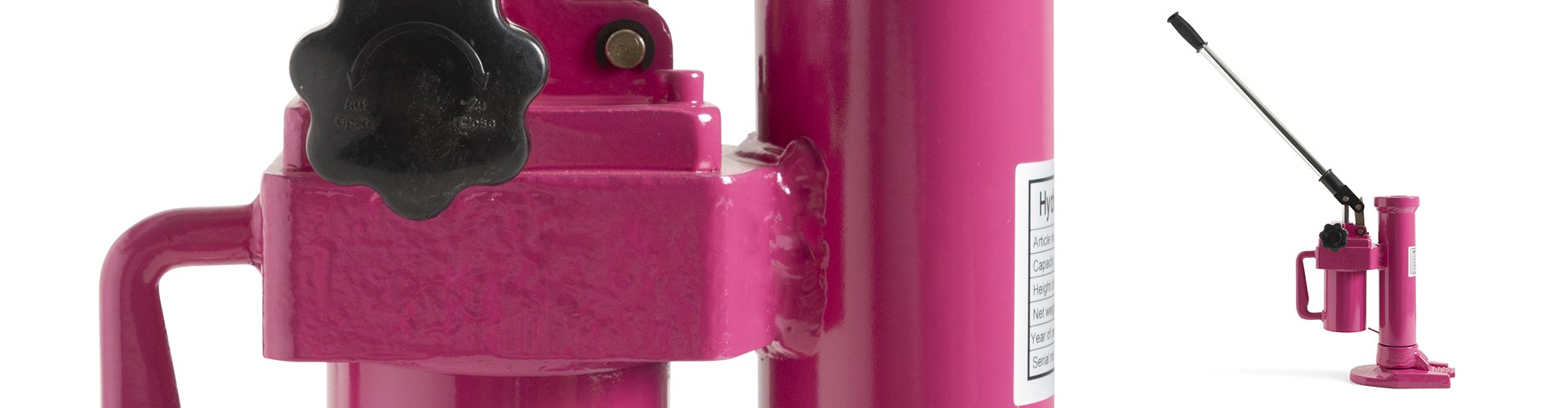

Toe Jack JM5

For heavy loads up to 5 tons

Features:
  • Forged safety toe, made of high-strength, hardened and tempered high-quality steel
  • Forging yields a very high safety margin (exceeds the EU Directive 2006/42/EC)
  • A peg on the back secures correct insertion
Technical data
JM5
Loading (ton)
5
Lifting height (mm)
205
Min.height/tooth (mm)
25
Min.height/head (mm)
368
Load on the operating handle (N)
380
Net weight (kg)
25
