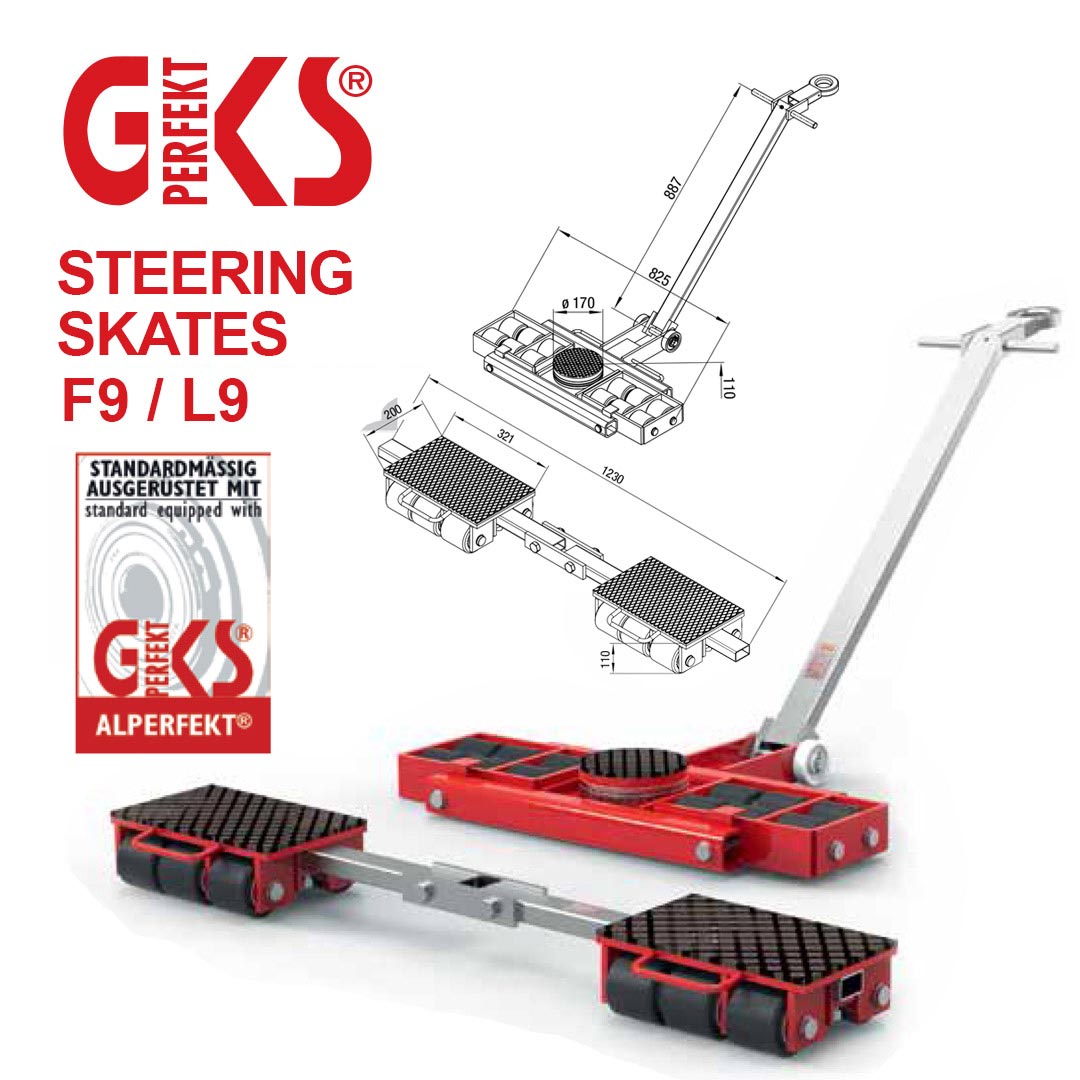

Steering Skates F9 / L9
For loads with the weight up to 18 tonnes
Сharacteristics:
- Stable structure
- The height of the skate is extremely low: 110mm
- All the skates of equil height are combinable
- Durable wheels of long-term usage, tested for years
- Load Capacity – 180 kN (18t)
Technical data | F9 | L9 |
|---|---|---|
Loading height / number of wheels (85 x 85 mm) | 110 mm / 12 | 110 mm / 12 |
Contact surface per cartridge | 320 x 200 mm | - |
Connecting Rod | - | - |
Swivel plate Ø 170 mm, steering angel | - | ± 90° |
Guide bar | - | 1080 mm |
Overall dimensions (L x W) | - | 840 x 583 mm |
Tare weight | 43 kg | 59 kg |
Load Capacity | 90 kN (9 t) | 90 kN (9 t) |
Optionals / Strengths
Can be combined with the Tandem trolleys TL6 / TL12 or Rotating trolleys RL2 / 4 / 6.
