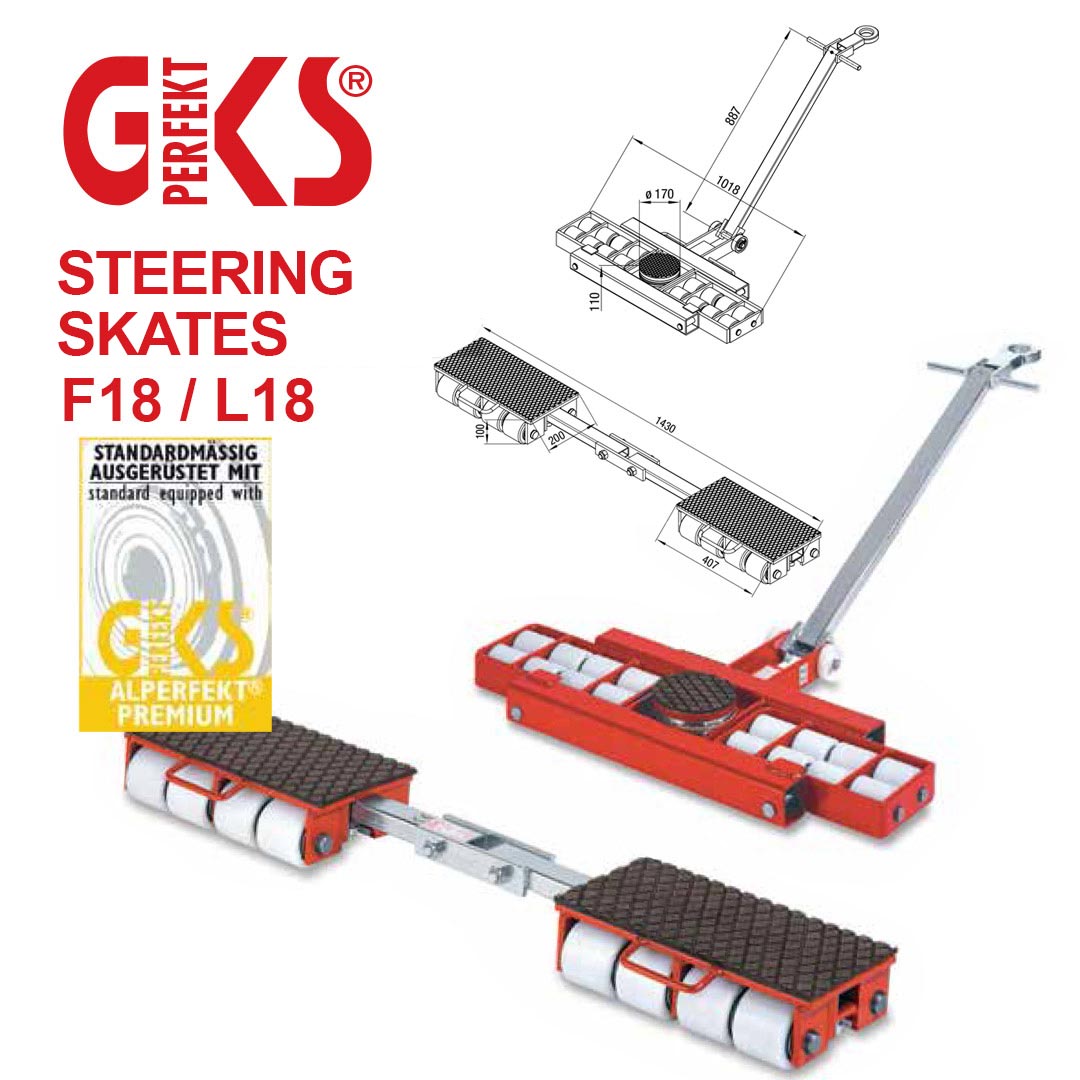

Steering Skates F18 / L18
For loads with the weight up to 36 tonnes
Сharacteristics:
- Combinable with the steering skates Tandem TL6 / TL12 and with swivel skates RL2 / 4 / 6
- The height of the skate is extremely low: 110 mm
- Load Capacity – 360 kN (36t)
Technical data | F18 | L18 |
|---|---|---|
Loading height / number of wheels (85 x 85 mm) | 110 mm / 16 | 110 mm / 16 |
Contact surface per cartridge | 200 x 407 mm | - |
Connecting Rod | - | - |
Swivel plate Ø 170 mm, steering angel | - | ± 90° |
Guide bar | - | 1080 mm |
Overall dimensions (L x W) | - | 1030 x 620 mm |
Tare weight | 55 kg | 82 kg |
Load Capacity | 180 kN (18 t) | 180 kN (18 t) |
Optionals / Strengths
Can be combined with the Tandem trolleys TL6 / TL12 or Rotating trolleys RL2 / 4 / 6.
