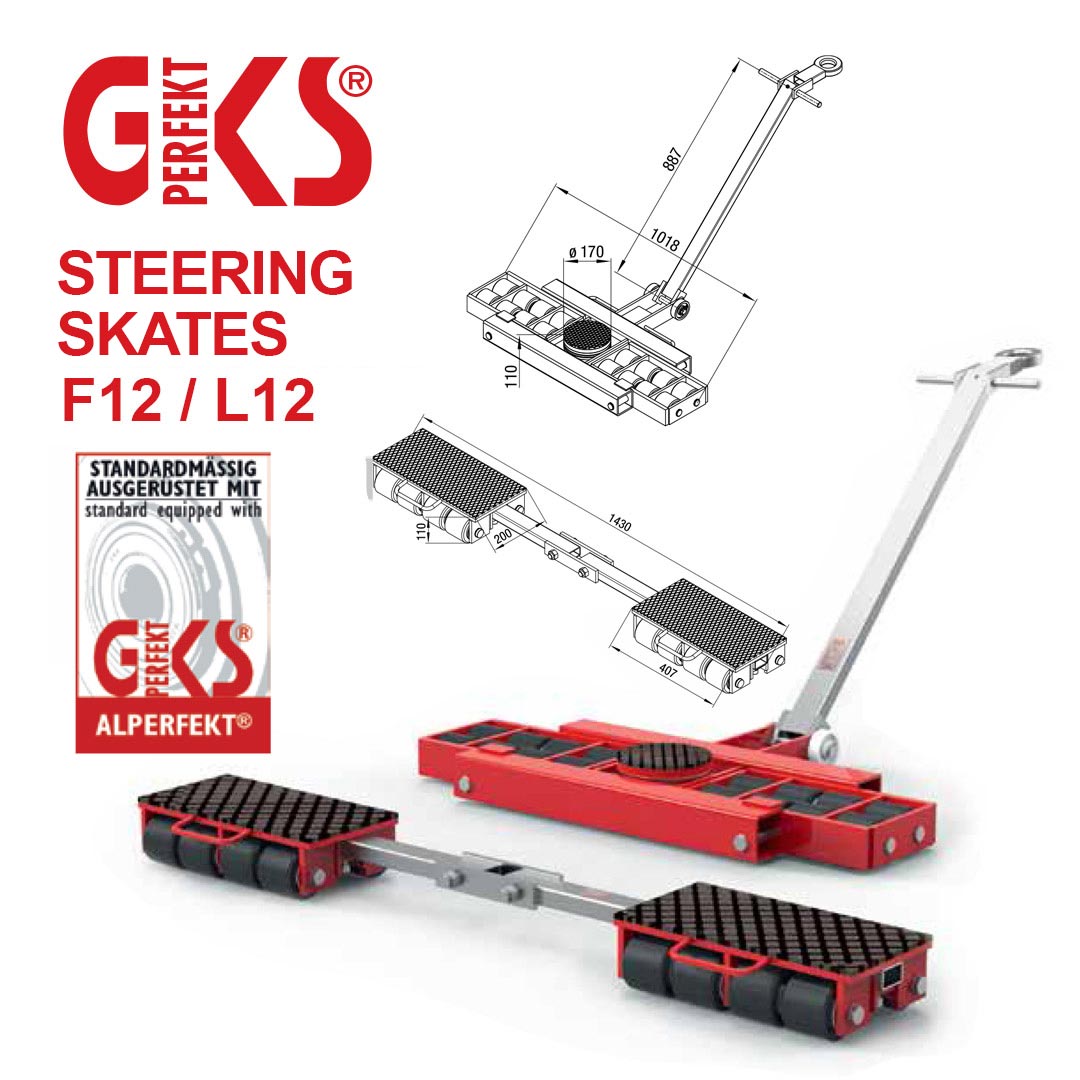

Steering Skates F12 / L12

For loads with the weight up to 24 tonnes

Сharacteristics:

  • Combinable with the steering skates Tandem TL6 / TL12 and with swivel skates RL2 / 4 / 6
  • The height of the skate is extremely low: 110mm
  • All the skates of the models F / L3 and F / L18 are combinable
  • Load Capacity – 240 kN (24t)
Technical data
F12
L12
Loading height / number of wheels (85 x 85 mm)
110 mm / 16
110 mm / 16
Contact surface per cartridge
200 x 407 mm
-
Connecting Rod
-
-
Swivel plate Ø 170 mm, steering angel
-
± 90°
Guide bar
-
1080 mm
Overall dimensions (L x W)
-
1030 x 620 mm
Tare weight
52 kg
80 kg
Load Capacity
120 kN (12 t)
120 kN (12 t)

Optionals / Strengths

Can be combined with the Tandem trolleys TL6 / TL12 or Rotating trolleys RL2 / 4 / 6
Can be combined with the Tandem trolleys TL6 / TL12 or Rotating trolleys RL2 / 4 / 6.
