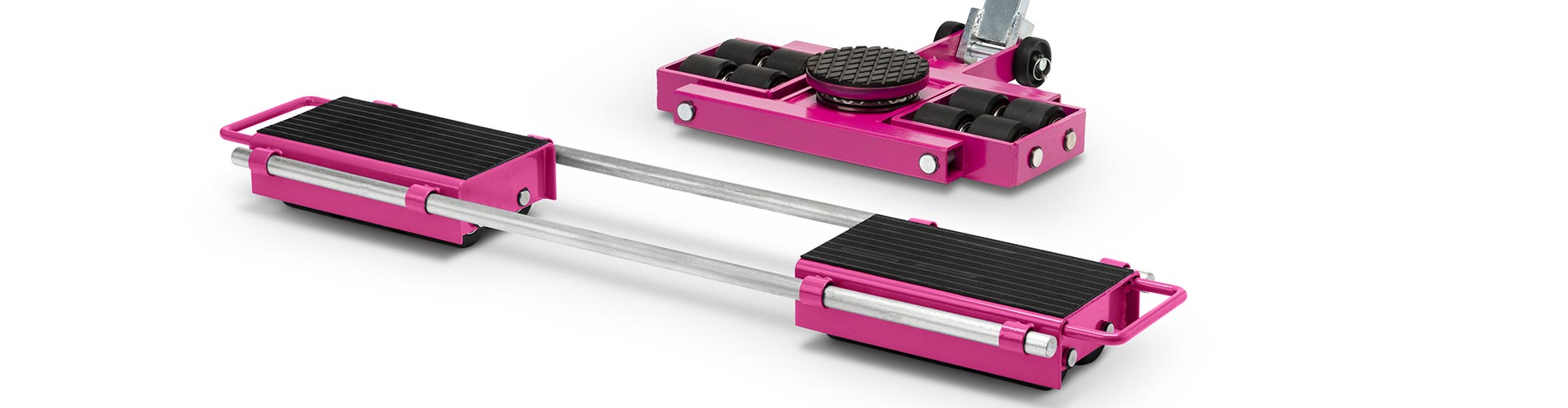

Steering skates AS9/R9

For loads with the weight up to 18 tonnes

Сharacteristics:
  • Stable structure
  • The height of the skate is extremely low: 110mm
  • All the skates of equil height are combinable
  • Durable wheels of long-term usage, tested for years
  • Load Capacity – 150 kN (15t)
Technical data
AS6
R9
Loading Height / no. of the Wheels
110 mm / 8
110 mm / 12
Contact surface per cartridge
170 ø
350 x 170 mm
Connecting Rod
-
700 - 1250 mm
Swivel plate Ø 170 mm, steering angel
-
-
Guide bar
-
-
Overall dimensions (L x W)
610 x 520 x 110 mm
420 x 270 x 110 mm
Weight
43 kg
38 kg
Load Capacity
60 kN (6 t)
90 kN (9 t)
